LDT-PSL China Factory Supplier Fully Automatic High Speed Mattress Spring Machine Pocket Spring Production Line (CE Certified)

Basic Info

Model NO.	LDT-PSL
Capacity	100-150Pcs/min
Spring Diameter	27-45mm
Spring Height	120-250mm
Wire Diameter	1.6-2.2mm
Total Power	12KW
Air Supply	0.6-0.8Mpa
Voltage	3 Phase, 380V, 50/60HZ
Non-woven Fabric Thickness	60-100g/m2
Weight	15000 KG
Transport Package	Wooden Pallet
Specification	3500x2500x2000mm
Trademark	LADETECH
Origin	China
HS Code	8463300000
Production Capacity	100 Sets/Year

Product Description

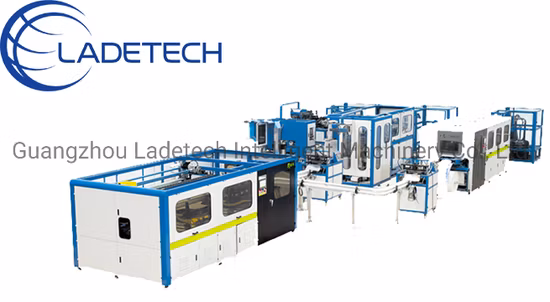

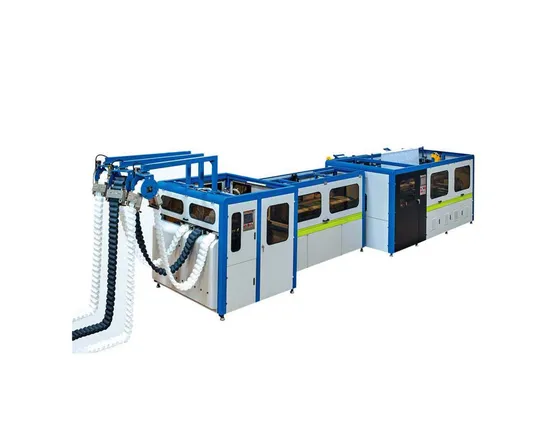

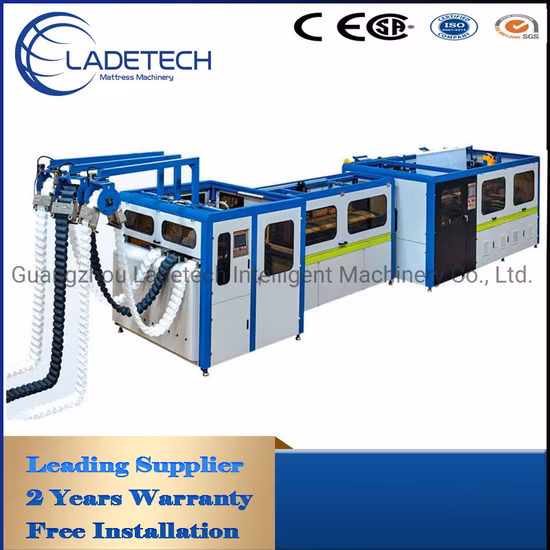

LDT-PSL Automatic Pocket Spring Production Line

Production Description:

1.It is applied to cylindrical and barrel pocket spring.2.It is easy to adjust different pocket spring height.3.Couple of error detection devices can decrease wastage of material efficiently.4.It can be connected to 1-3 sets of pocket spring coiling machines.5.It is equipped with Robatech or Nordson hot melt glue tank.

Technical Specification
Applicable Nonwoven Fabric Thickness	60-100g/m2
Applicable Nonwoven Fabric Width	340-690mm
Steel Wire Diameter	1.6-2.2mm
Pocket Spring Height	120-250mm
Total Power	120KW
Air Consumption	0.6-0.8Mpa
Total Weight	15000KG

Loading Pictures:
Certificates:

About us:

Ladetech Mattress Machinery is professional supplier of complete set of foam and mattress machines. With more than 10-year experience in manufacturing mattress machinery, we have been selling our machines to more than 700 mattress manufacturers in China and abroad. Our main machines are bonnell spring machine, pocket spring machine, superlastic spring machine, mattress multineedle chain stitch quilting machine, mattress sewing machine, mattress flanging machine, mattress tape edge machine, mattress packing machine, PU foaming machine, foam cutting machine, pillow machine and so on. Being an all-rounded supplier for foam and mattress plant manufacturers, we not only offer the best quality machines, but also permanent technical support and after sales service for clients all around the world.
